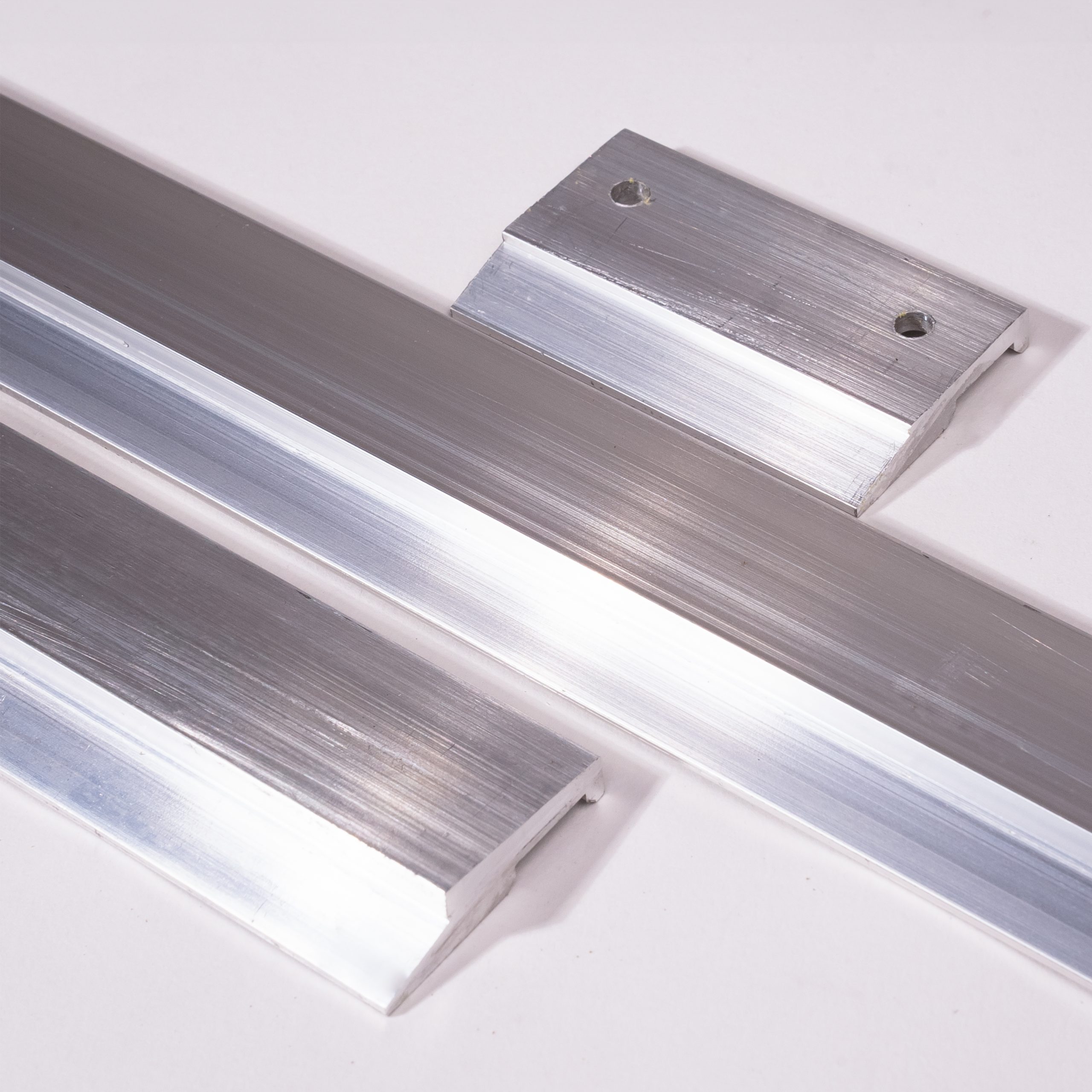

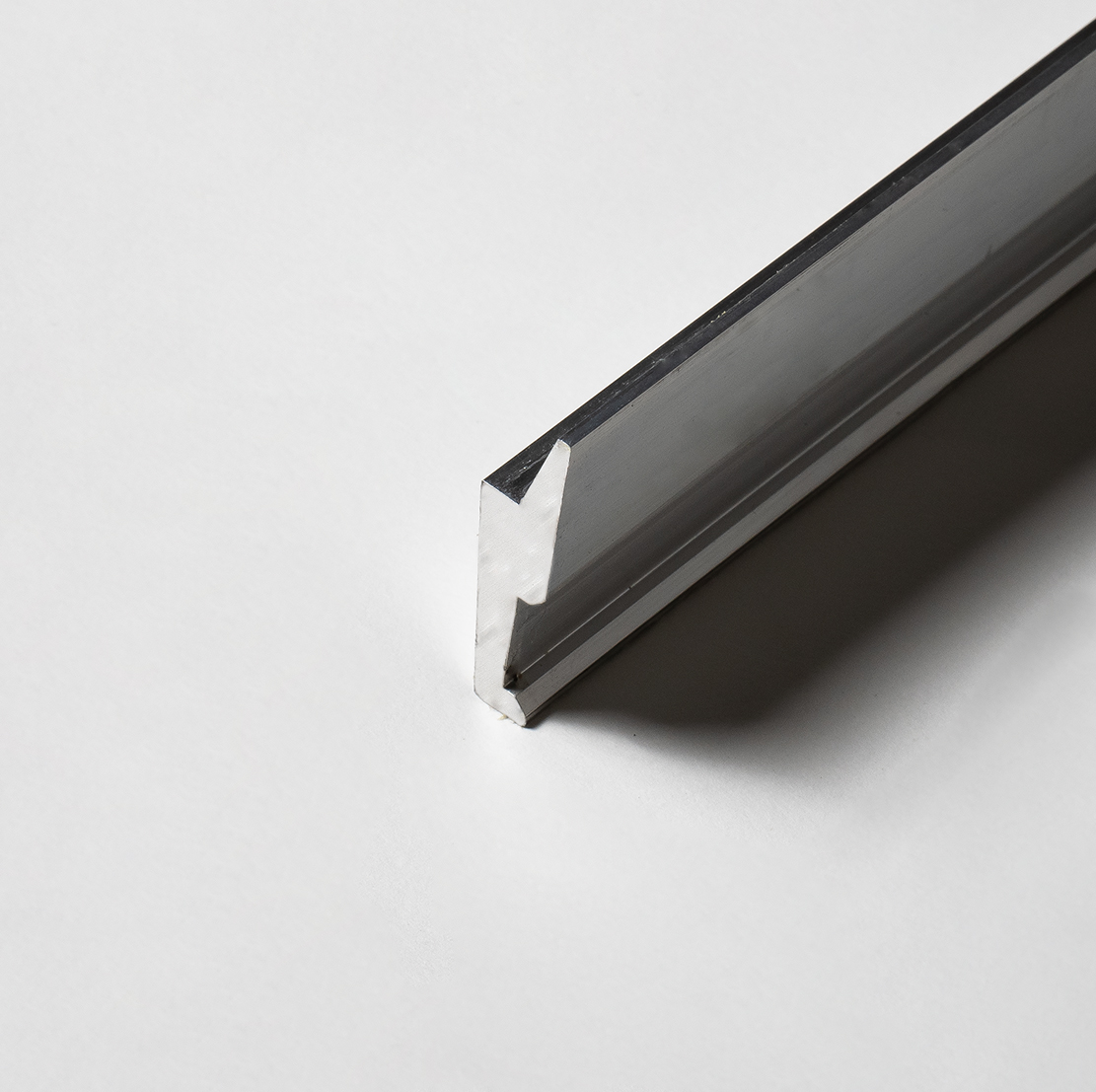

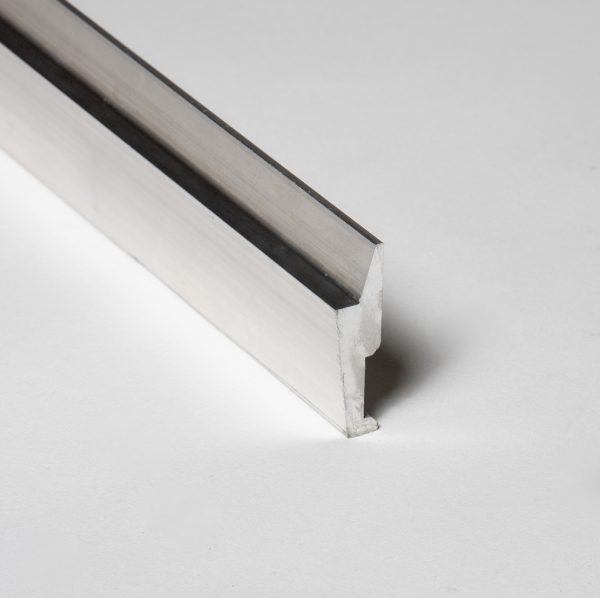

7D Z Clip™ Wall Rail

The 7D Z Clip™ Wall Rail is the perfect patented solution to straighten all uneven substrates quickly and accurately.

Product Variations

  1. 12 foot rail w/o holes - $27.00

Custom lengths and pre-drilled holes available upon request. Email for pricing and lead times.

Additional information

Product Information

Material :

6063 T6 Aluminum

Stock Continuous Length :

12'

Custom Lengths Available :

Email for pricing and lead times

Lift Off :

½”

Projection :

⅜”

Patent No :

US 12,085,104

SEE THE DIFFERENCE

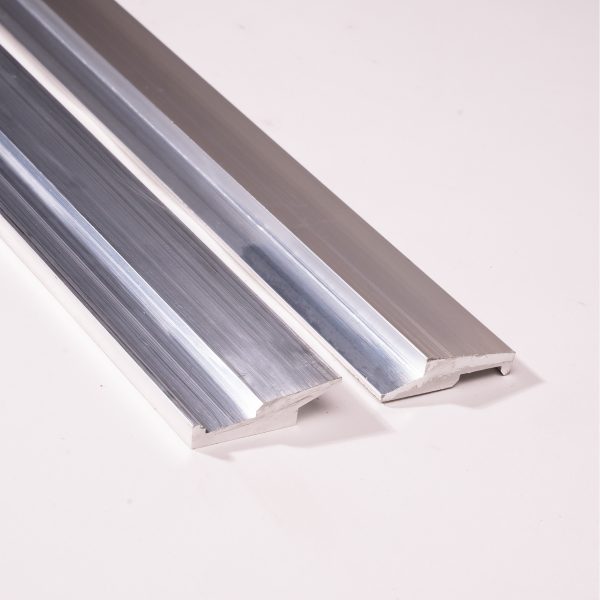

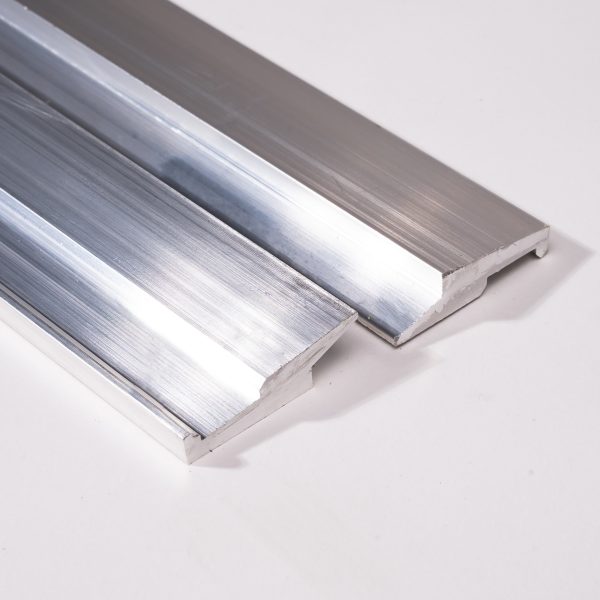

Standard Z Clip vs 7D Z Clip™
